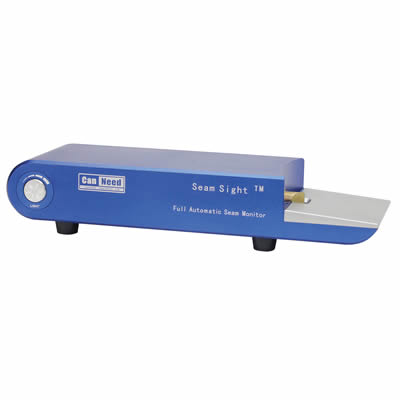

SeamSight-C
SeamSight-C
is equipped with the new seam measuring software SeamSight® Professional Software. Which will do the line positioning automatically and the measurement to be finished within 1 second!
Use the CanNeed SPC data collection system, The actual seam thickness, actual countersink, etc., can be transferred to the computer automatically.
The software also adopted the data base management system, all the measurement data will be restored in the system data base, so that to enhance the software performance and more convenience in data management. The result statistic and result chart has been added in the data base screen for overview and comparison. Meanwhile, the measurement screen has been optimized for a vivid result display.
Advantages
1) Full automatic line positioning (Auto measure), measurement finished within 1 second!
2) Equipped with Golden Lens® video capture device which interference-free of external light source and ensured the high image definition
3) SPC compatible, use a data adapter to collect the data from Mitutoyo Digital Indicator (Actual Seam Thickness; Actual countersink)
4) Connect the Seam Sight to the USB of PC for electric power. Extra power supply is not needed.
5) Tightness can be measured
6) There are 5 calculation formulae of Overlap Rate for clients to choose
7) Resolution: 0.001mm Accuracy: 0.005 mm Magnification factor: 60 X Line positioning magnification factor: 180 X
8) Magnifier option enable users to magnify the testing image for a more accurate line positioning
9) The Anti-noise Seam Saw can be chosen, help protect your hearing
10) Report format can be customized, flexible for different report styles of different companies
11) 12 Measuring Items: Tightness, Seam Length, Body Hook Length, End Hook Length, Overlap, Seam gap, Overlap rate, Body Hook lapping rate, End Hook lapping rate, On-screen Seam Thickness; Actual Seam Thickness; Actual countersink;
12) Software adopted data base management system, measurement results and images saved in the data base
13) Users can review or re-measure the saved projects at any time
14) Graph chart statistic function, automatically analyze and compare the measurement results
15) Data can be exported as an Excel file
16) Predefine various qualification standards, auto judge and warn whether the results are qualified in every measure

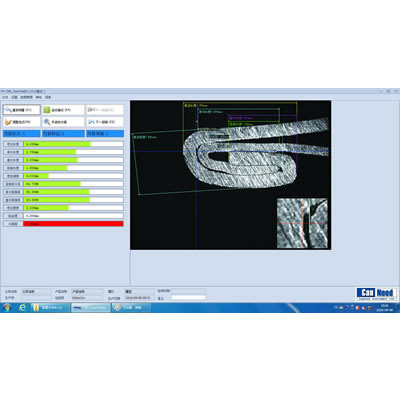

17) Measurement results and label lines mark directly on the image, results will also display in corresponding field on the screen
18) Seam image can be printed, stored, no need to retain the sample cans.
19) Provide with calibration piece, calibrate at any time
20) Use the monochromatic source, make it much more durable
Technical Parameter
● Power supply: USB port of PC
● Serial interface: RS 232 C
● Resolution: 0.001mm
● Accuracy: 0.005 mm
● Cans dia. : 52-127 mm, customized made up to 200
● Dimensions: L400 x W200 x H150 mm
