QC-526M1F

COMETECH QC-526M1F

QC-526M1F

have a practical test space and stroke. The tensile testing machine is equipped with servo motor and ball screw with maximum capacity 20KN. Test stroke varies from the dimension of sample; with different sorts of grips and diverse test modes are available.

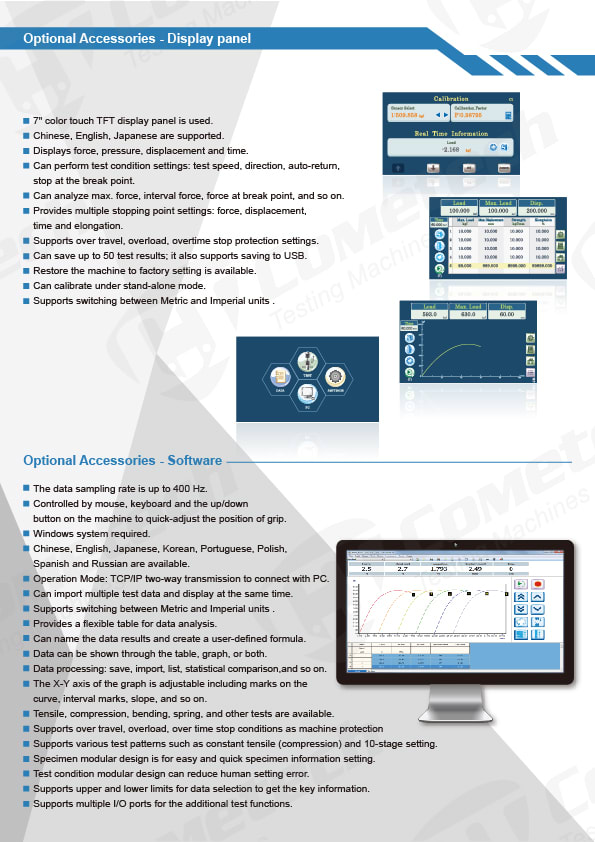

This tensile machine is compatible with Windows 7/8/10. Equipped with Cometech’s intermediate M1F controller system, the tensile tester can perform tensile, compression, bending, peeling, hold tensile (compression) tests, etc. The software is user-friendly in different languages. Units can be chosen between metric or imperial; real-time graphs show a complete analysis of the test; data can be saved as test report for further evaluation. The universal tensile testing machine can be operated in stand-alone mode for a quick access to test data.

Confirm to

ASTM E4, ASTM F88, ASTM D882

ISO 5893, ISO 7500-1, ISO 9283

EN 1002/1-4
