QC-548M1F

COMETECH QC-548M1F

QC-548M1F

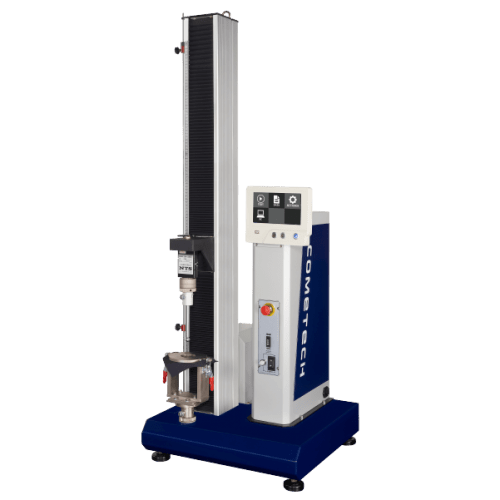

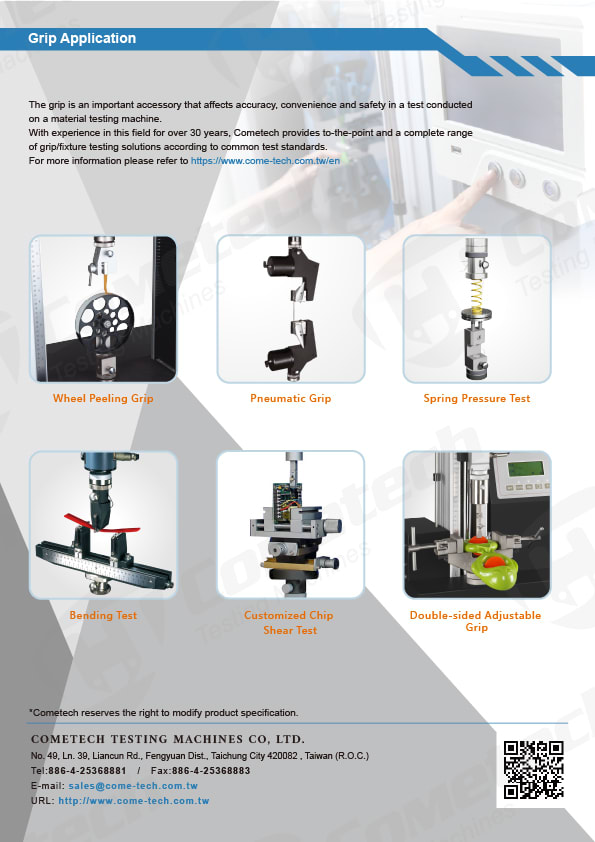

series have relatively compact size and take up less space. The universal tensile tester is equipped with servo motor, ball screw and is suitable for test that requires capacity below 5kN. Test stroke can be adjusted for different dimensions of sample; different sorts of grips are available for diverse tests.

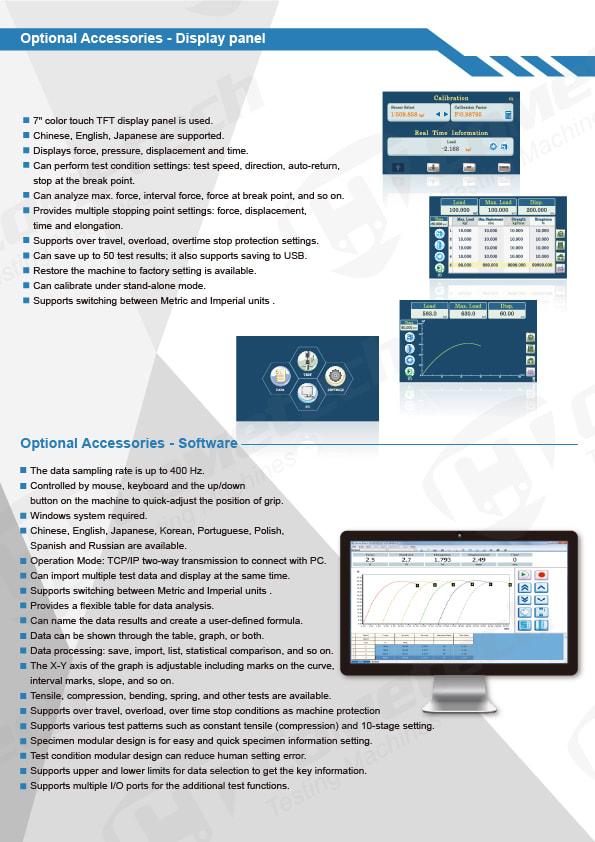

The M1F special test software of the tensile tester is compatible with the Windows system, and can perform various functions such as tensile (compression) force test, bending test, peeling test, and hold tension (compression). The software operation is simple and easy to learn, with multiple languages, various metric and English unit choices, real-time graph display, and provides complete test analysis data, report planning, complete analysis or archiving after the test is completed. This tensile testing machine can also be equipped with a display for stand-alone operation to capture effective test data quickly.

Confirm to

ASTM E4, ASTM F88, ASTM D882

ISO 5893, ISO 7500-1, ISO 9283

EN 1002/1-4
