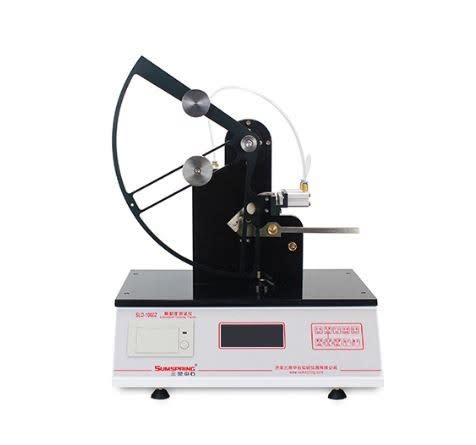

SLD-1000Z

SUMSPRING SLD-1000Z

SLD-1000Z

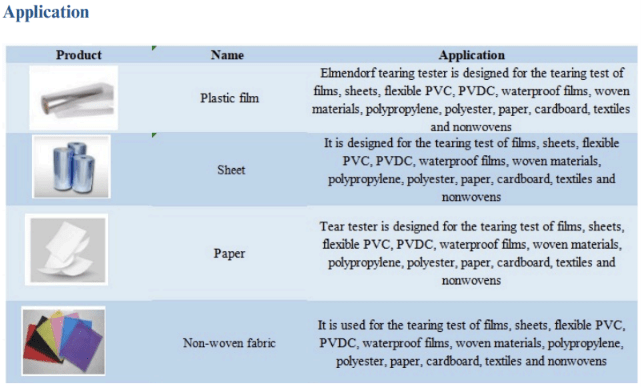

is designed for the tearing test of films, sheets, flexible PVC, PVDC, waterproof films, woven materials, polypropylene, polyester, paper, cardboard, textiles and nonwovens. It is the necessary testing instrument for the packaging,paper industries, quality inspections and quarantine labs.

Lift the pendulum up to a certain height to give it an initial potential energy. The pendulum tears the specimen while swinging down. Computer calculates the decreased energy caused by tearing to obtain the required force for tearing.

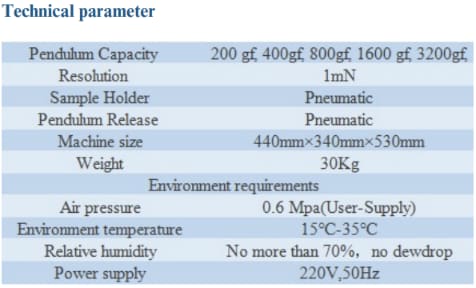

Optional Configurations:

Basic Pendulum: 200 gf, 1600 gf

Extra Weight: 400 gf, 800 gf, 3200 gf, 6400 g

Confirm to

ISO 6383-1-1983, ISO 6383-2-1983, ISO 1974, ASTM D1922, ASTM D1424, ASTM D689, TAPPI T414
