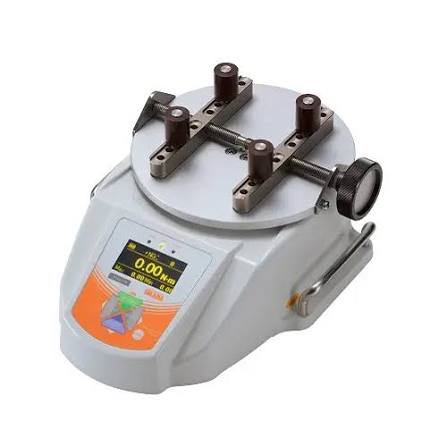

DTXS (0.5 N⋅m - 10 N⋅m)
IMADA DTXS (0.5 N⋅m - 10 N⋅m)
DTXS-series
Standard type screw cap torque tester combines ease of use and functionality with the capacity of 50 N-cm to 1000 N-cm (10 N-m), and can measure opening and closing torque of container lids such as PET bottles or jars. High-speed sampling at 2000 Hz ensures high repeatability in both peak measurement and graphing. Next Series with firmware version 5 or later offers improved measurement stability due to low noise, and expandability and convenience through additional functions (firmware download) and various software and instruction manuals available from the dedicated website (IMADA Connected).
Features
- High sampling rate (2000Hz) for accurate results, capturing small changes and accurate peak values by following rapid changes of torque
- Ideal for measuring opening/closing torque of various samples such as bottles and bins
- Reduces risk of misreading values with easy-to-read high luminance organic EL display. Allows customers to customize the contents for the three sections of the display screen
- Handles a wide range of samples with various optional tables and attachments
- Next Series (Firmware Ver.5 or later) equips extended functions such as additional functions and software downloads from IMADA download site
