ZTS (2N – 5,000N)
IMADA ZTS (2N – 5,000N)
ZTS-Series

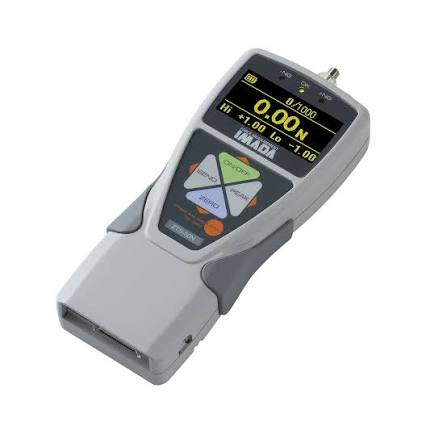

Standard type digital force gauge has capacity of 1000N and is easy-to-operate and functional, with 2000Hz high-speed sampling for accurate peak measurement and smooth curve when graphing data. The included software enables data management via PC, and graphing software for detailed data analysis. Several external output methods are available for connection to various devices. Next Series digital force gauges with firmware Ver.5 or later has improved measurement stability with less noise, and optional functions and software can be downloaded from the dedicated website (IMADA Connected) functions require connection to separately-sold products.
Features
- High sampling rate (2000Hz) for accurate results, capturing small changes and accurate peak values by following rapid changes of force
- Reduces risk of misreading values with easy-to-read high luminance organic EL display. Allows customers to customize the contents for the three sections of the display screen
- Improves testing versatility by various data output options such as USB, wireless, and serial communication, which allows data management on a PC and combination with external devices
- Allows easy data acquisition and management with the included USB cable and software. By using with optional software real-time force-time graphing also possible
- Next Series (Firmware Ver.5 or later) equips extended functions such as firmware updates and various software downloads from IMADA download site
