DFS (5N – 1,000N)
NEXTECH DFS (5N – 1,000N)
DFS-Series

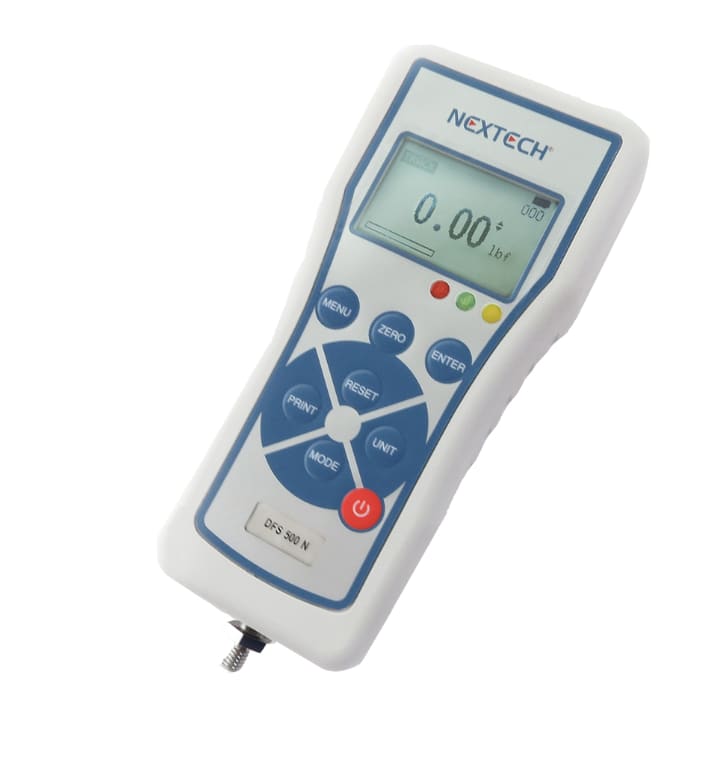

Digital Force Gauge offers a range of models with maximum capacities from 5N to 1,000N (0.5kgf-100kgf or 1.1lbf-220lbf). Features include Push-Pull Gauge, Peak/Track Mode, Invert Display, Pass/Fail LED, USB Output, Backlit Graphic LCD, Metal Enclosures, and Calibration Mode.
Features
- accuracy within 0.2% of Full Scale (FS)
- Handles both Tension and Compression loads with Peak Hold or Track Mode
- Stores up to 500 records in internal memory for later viewing or download
- Metal enclosures with 2x 10-32" (M5) and 4x M3 mountable threaded holes
- M6 threaded rod attachment to load
- Menu-driven, digital graphic LCD with white backlight

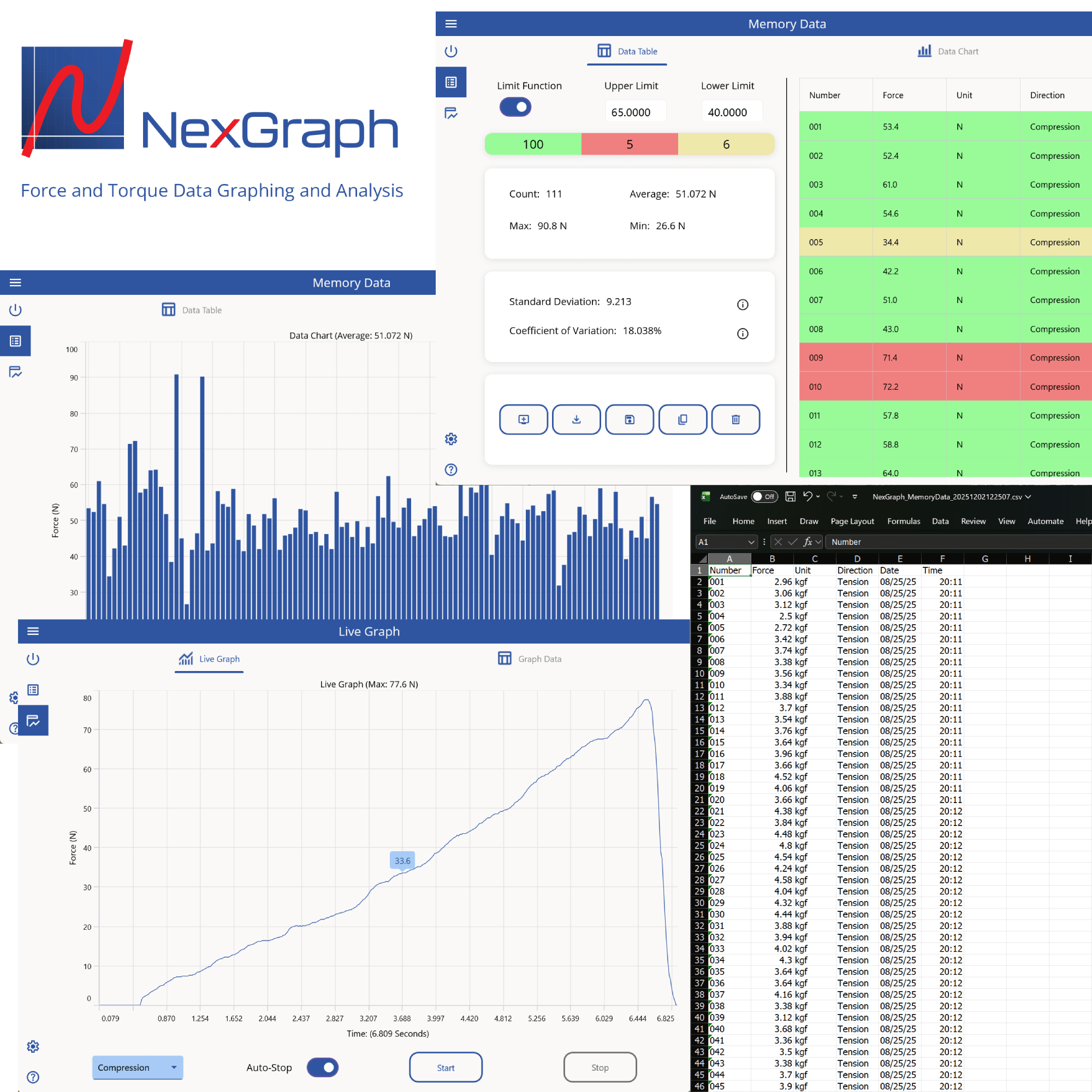

- Free software, 'NexGraph', for plotting a real-time graph of time versus force, is available for Windows, macOS, and Android. Download it here: https://nexgraphapp.com/
- Powered by an internal rechargeable NiMH battery pack or plug-in charger adapter
- Complete set includes a plastic case, charger, USB cable, printed manual, and 3x brass plated accessories (sharp point, hook, and compression plate)
- Calibration certificate issued by Nextech included
