TS7708
3NH TS7708
TS7708
Very Suitable for Rapid Color Measurement and Quantification
The versatile, rugged and easy-to-use piece of test equipment TS7708 color spectrometer, a product of 3NH's three - year dedicated R&D, It features a 1000 - line precision blazed grating for light splitting and a double - row 40 - group silicon photodiode array sensor. This large - area sensor ensures no saturation under strong light, high sensitivity to weak light, and a broad spectral response, guaranteeing fast, accurate, stable, and consistent measurements.
Key Highlights

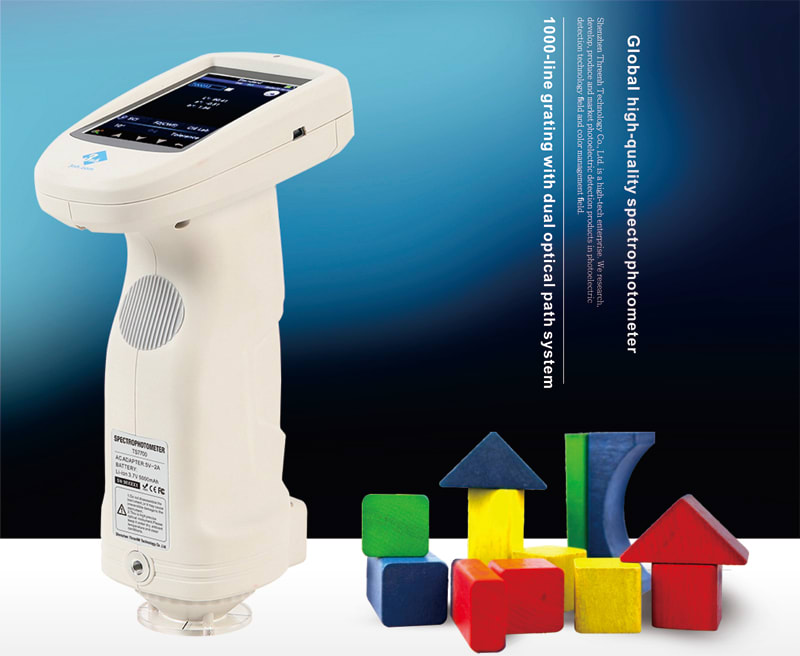

- 1000 - line precision blazed grating for light splitting and a double - row 40 - group silicon photodiode array sensor
- D/8 geometric optical illumination (SCI/SCE) measurement structure
- Measure SCI and SCE reflectance data for both regular and fluorescent samples
- Repeatability (ΔEab ≤ 0.03) and inter - instrument error (ΔEab ≤ 0.15)

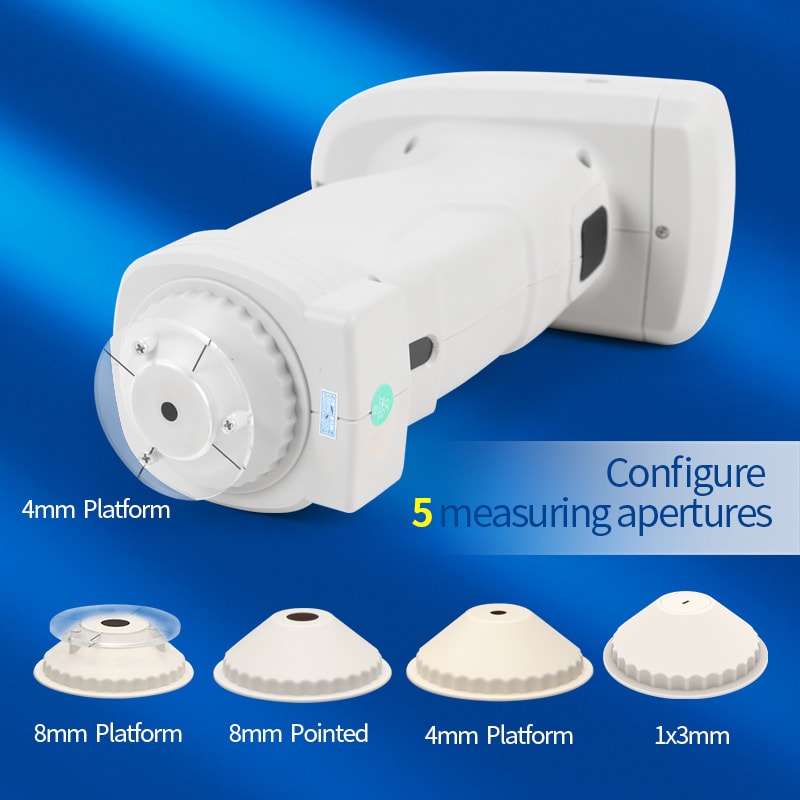

- Three measuring apertures (φ8mm, φ4mm, 1x3mm)
- Fast: capture times less than one second

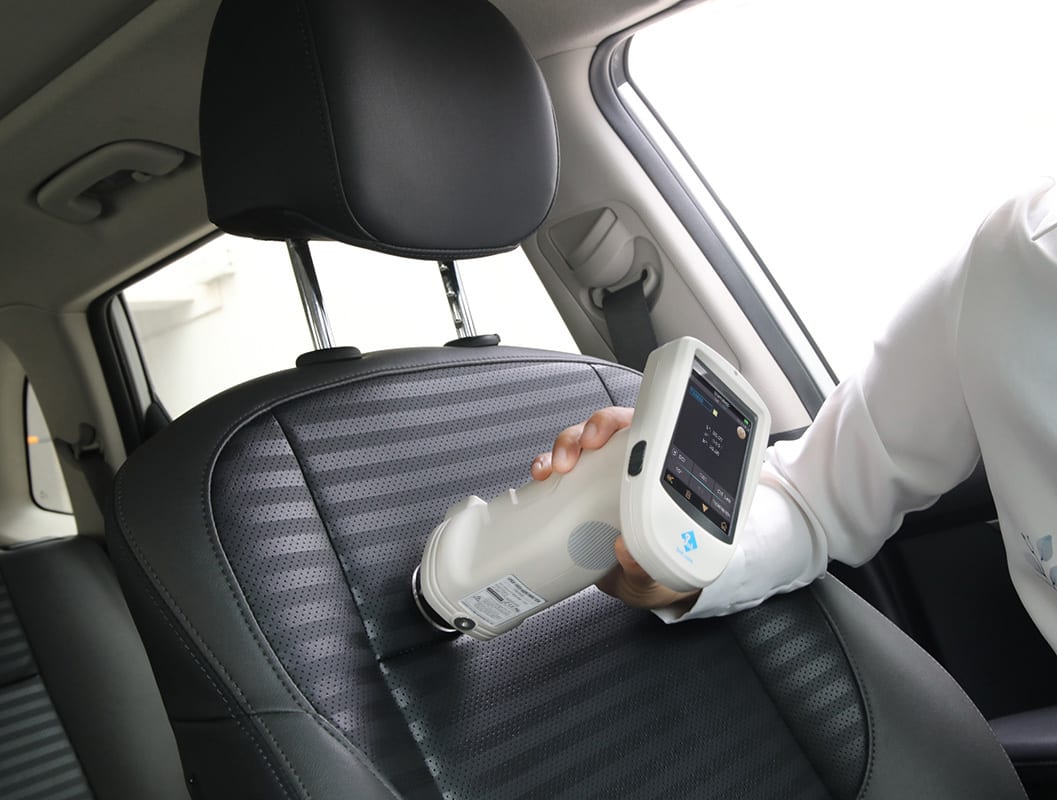

- Widely used in plastic electronics, paint coatings, textile printing and dyeing, printing, automotive, medical, cosmetics, and food industries
